B2741S (Narrow)
B2741S (Narrow)
Engine Power
27 HP Cat.
Drive
4WD
Torque
81.2 Nm
Engine Power
27 HP Cat.
Drive
4WD
Torque
81.2 Nm
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

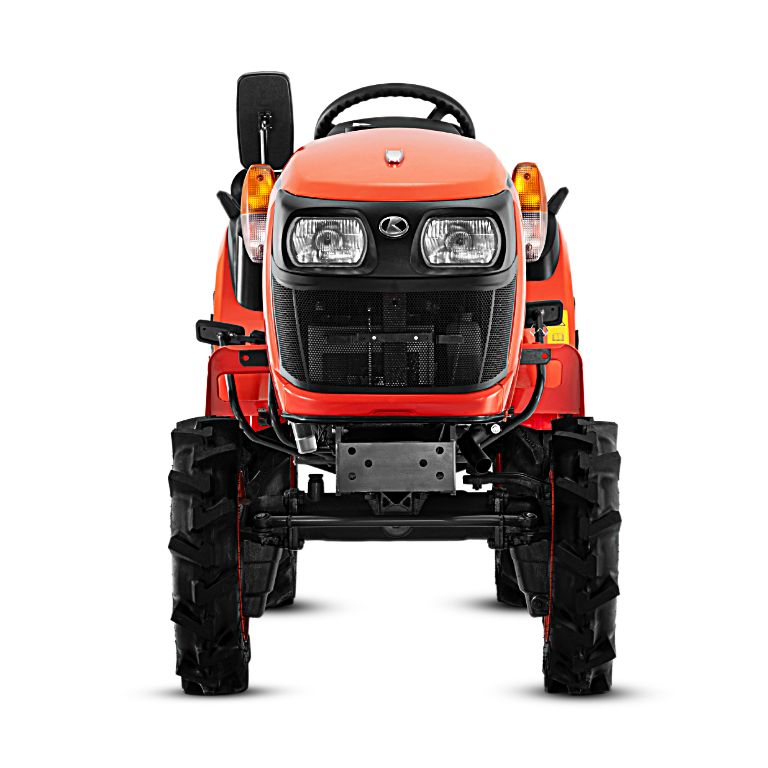

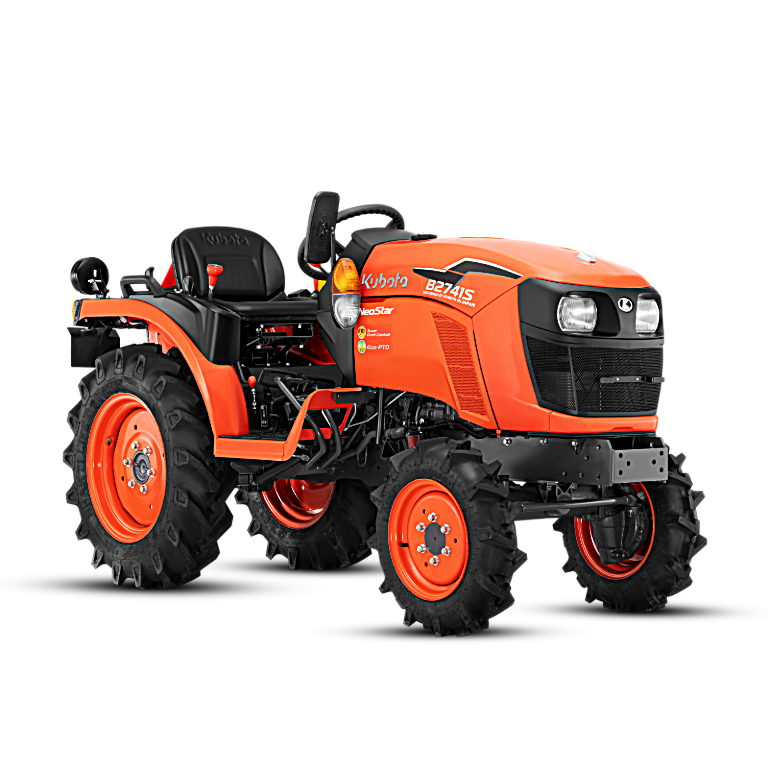

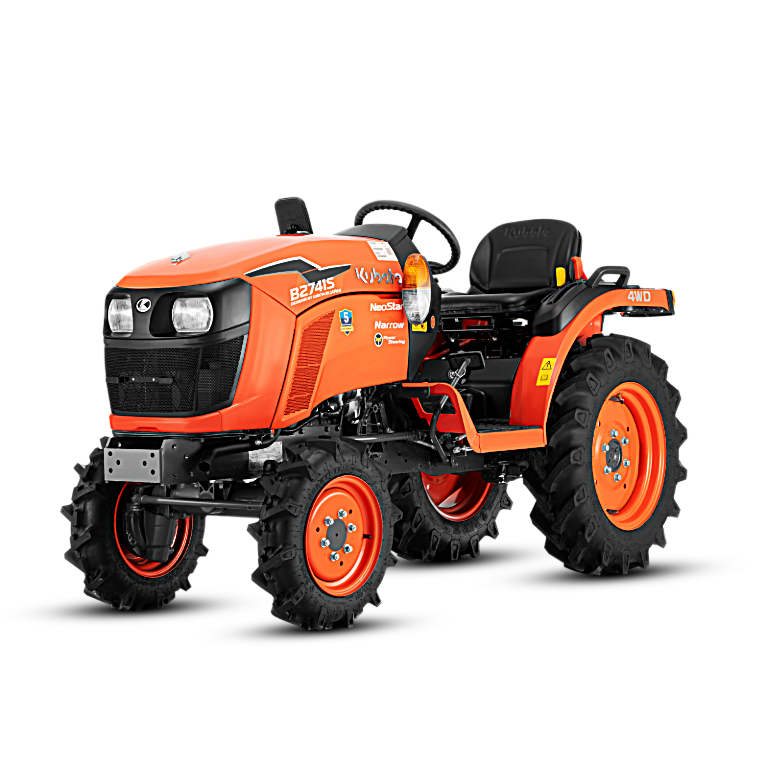

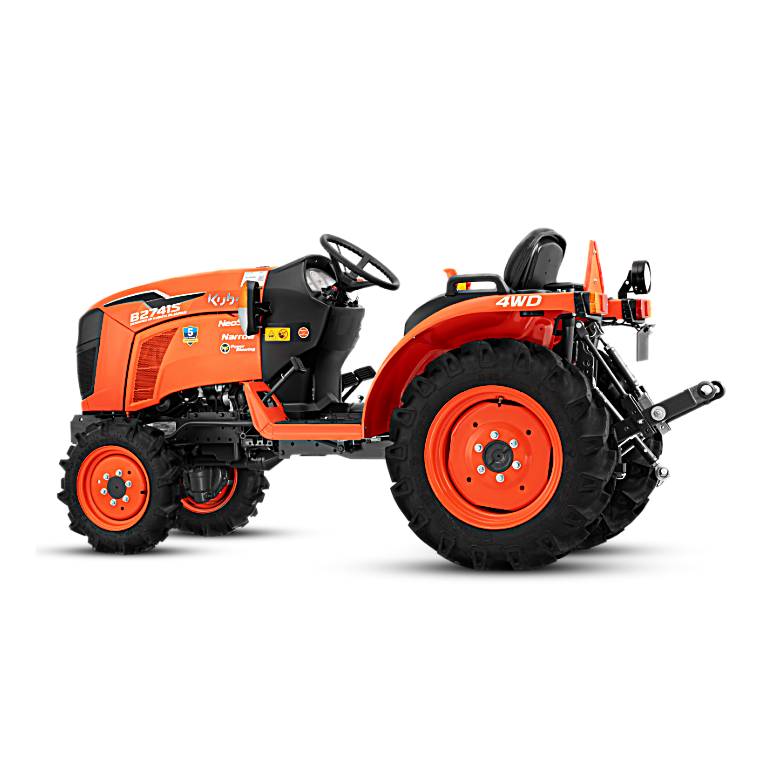

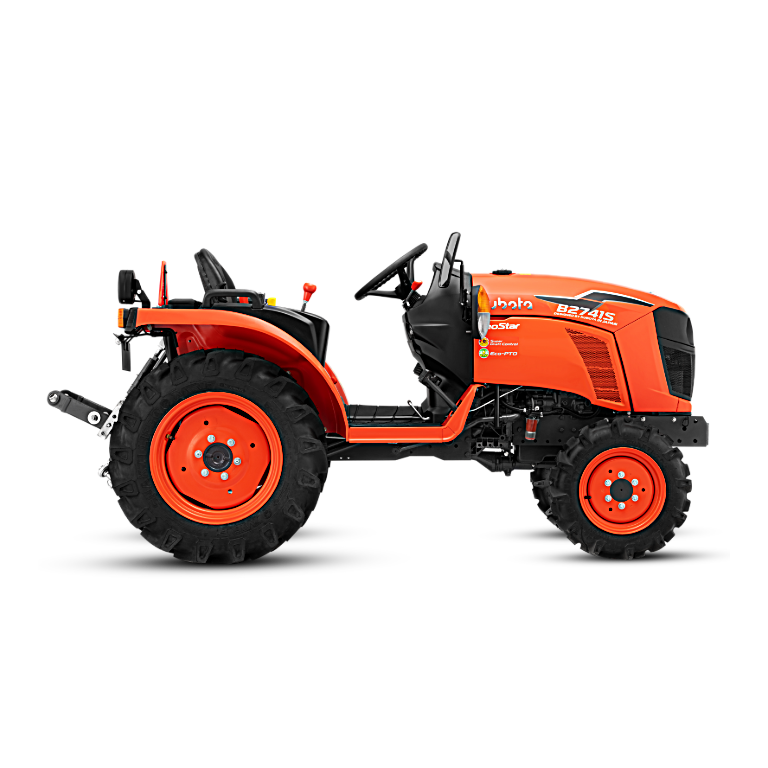

The Kubota B2741S Narrow tractor is a 27 HP category tractor and has proved its efficiency in agricultural fields due to its compact size, robust power, and advanced technological features like Super Draft Control (SDC), automatic depth adjustment, and a 4WD bevel gear driving system. Its comfort features, such as a suspension seat and key stop solenoid, provide ease of driving. Its lowest turning radius of 2.1 meters gives an unparalleled advantage in movement within narrow spaces, making it beneficial for agricultural applications like sugarcane, cotton farming,etc.
Reliable E-TVCS Diesel Engine
Exceptionally durable and reliable engine manufactured by Kubota in Japan. Quiet, low-vibration engine featuring high power, high torque with clean emissions.
2.1m TURNING RADIUS
With the turning radius for the B2741S Narrow being as tight as 2.1 m, movements in narrow places or between ridges are completed smoothly without any damage to crops.
Narrow Design
B2741S has a narrow rear width of 910 mm (2.98ft). Best suitable for inter-culture in large number of crops.
Intergral Power Steering
Integrated efficient design provides ease of steering and low maintenance.
Super Draft Control (SDC)
This function contributes to a reduction of slippage when using such implements as cultivators that require strong traction. An additional advantage is that it is never necessary to adjust the depth of cultivation with the result that makes operations easier and more efficient.
ECO PTO
ECO-PTO is the function designed to perform tractor operation by maintaining the PTO revolution at 540 rpm by lowering the engine revolution from 2600 rpm to 1830 rpm. This phenomenon helps to reduce the fuel consumption by operating the 540 rpm of PTO at less engine rpm. This function is recommended for operations in a field of small load fluctuations or for operations of relatively small loads.
Adjustable & Foldable Operator Seat with suspension
Comfortable, durable and easy maintenance convenience.
KUBOTA
B2741S (Narrow)
Engine Power
18.5 kW (27 HP Cat.)
Maximum Torque
81.2 Nm
Rear Tyre Size
8 x 18 Inch
No. of Cylinders
3
Lift Capacity
750 Kg
Gearbox Type
9 Forward and 3 Reverse
OTHER SPECIFICATIONS
Transmission
Clutch Dry Single Plate Fuel Tank
Capacity 23 litre Brake Types
Brakes Wet Disk Type (OIB) Steering Type
Steering Integral type power steering PTO Type
PTO 540 @ 2535 | 750 @ 2542 Tyres
Front Tyre Size 5 X 12 Inch Rear Tyre Size 8 x 18 Inch
