B2741S
B2741S
Engine Power
27 HP Cat.
Drive
4WD
Torque
81.2 Nm
Engine Power
27 HP Cat.
Drive
4WD
Torque
81.2 Nm
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

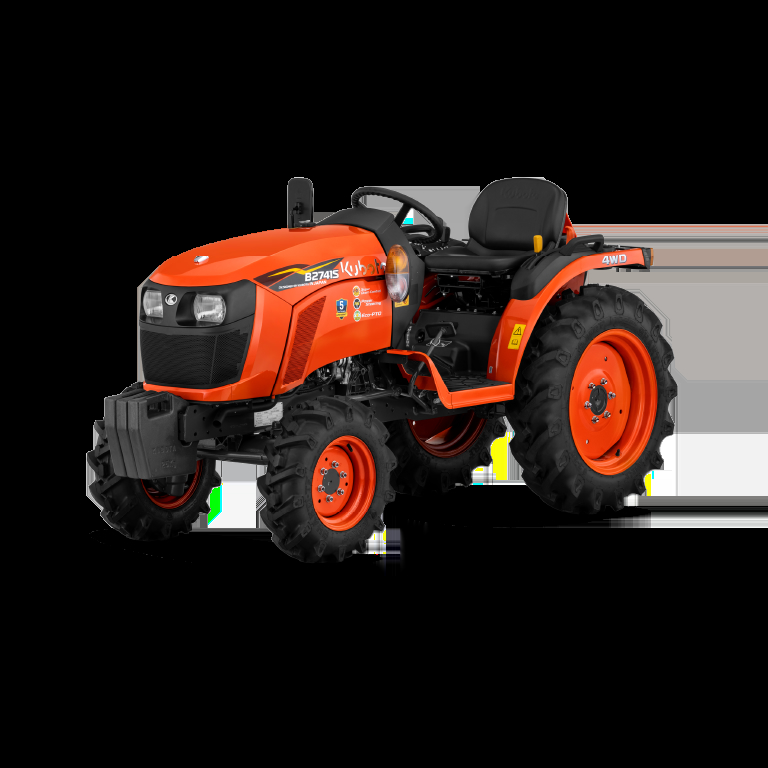

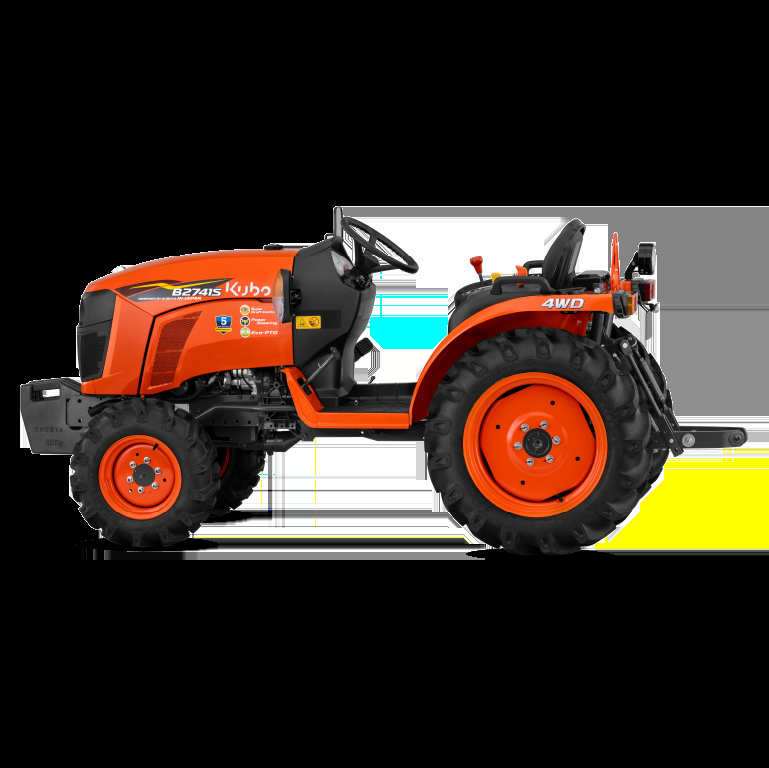

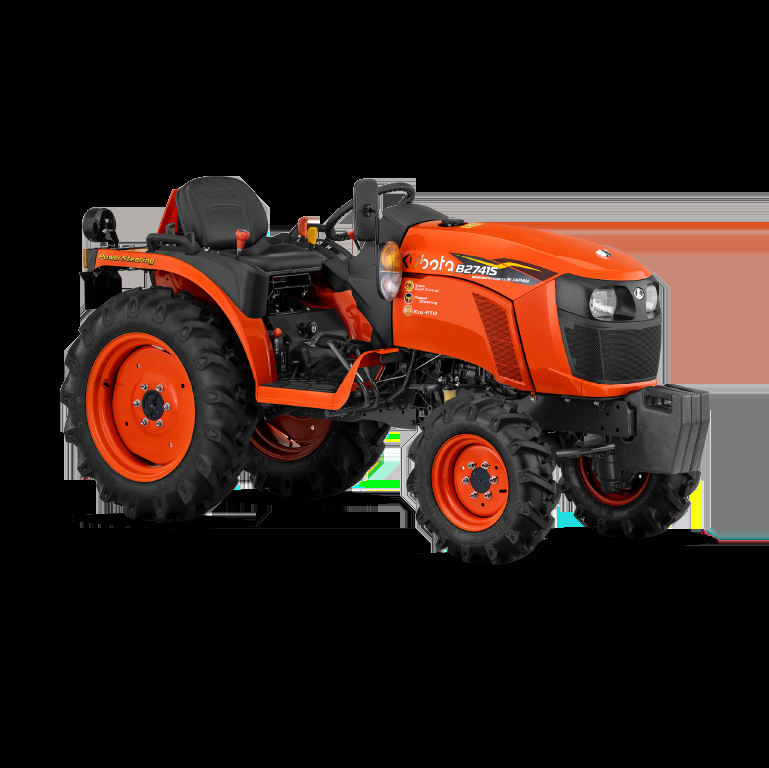

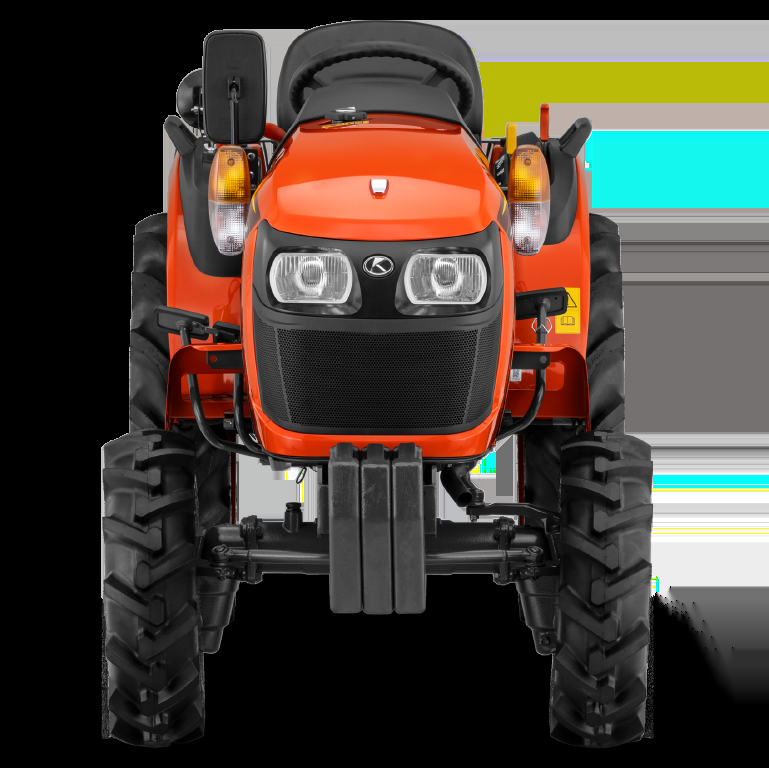

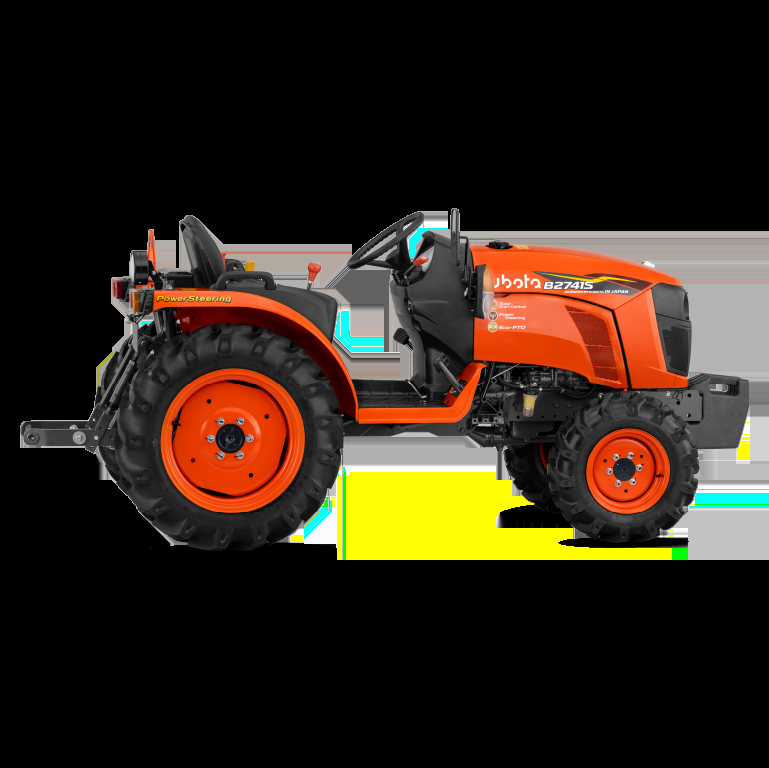

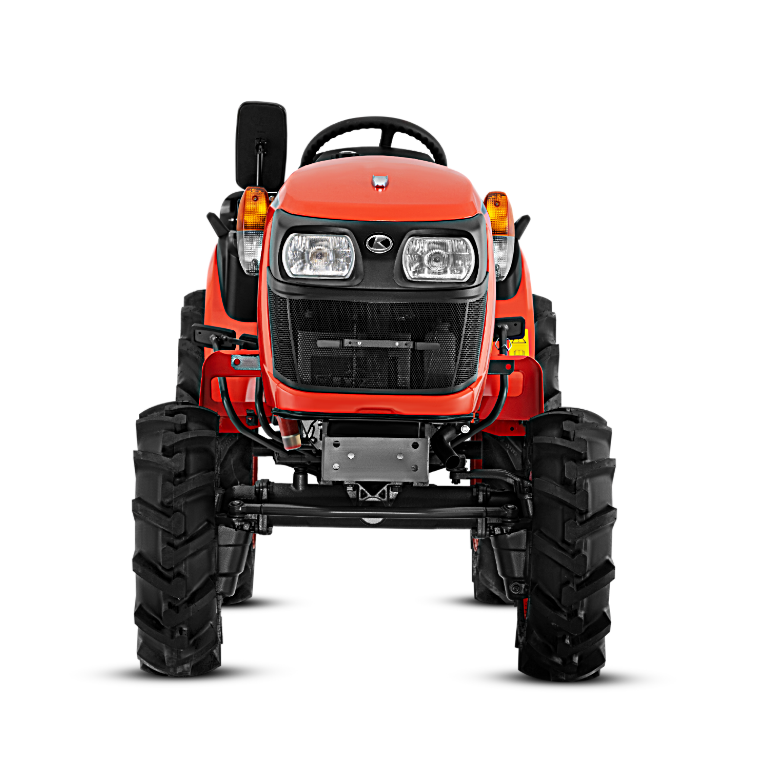

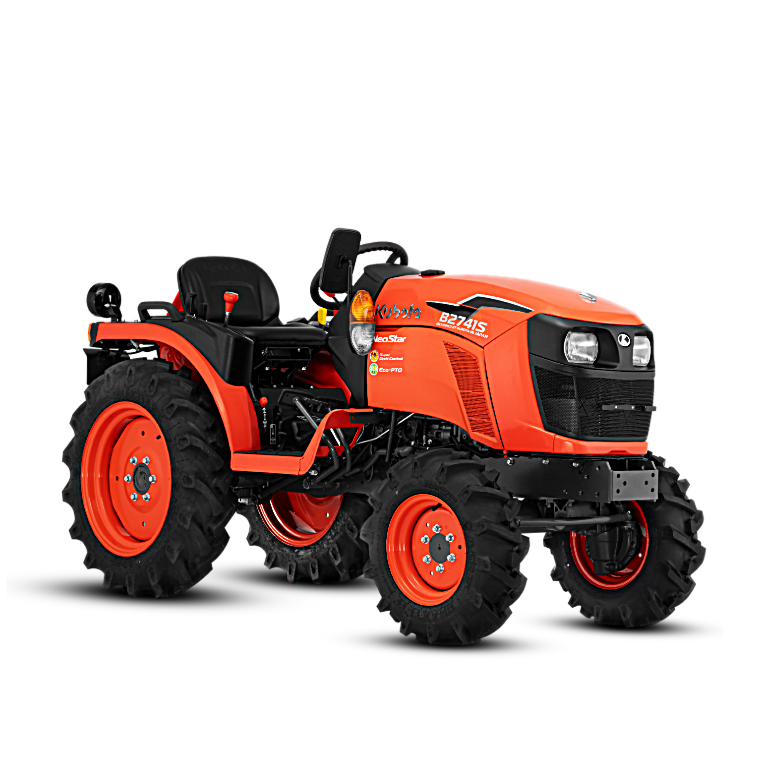

The Kubota B2741S tractor is 27 HP category tractor has proved its efficiency in agricultural fields due to its compact size yet robust power and advanced technological features like super draft control (SDC), automatic depth adjustment, 4WD bevel gear driving system. It’s comfort features like suspension seat, key stop solenoid gives ease of driving. Its lowest turning radius of 2.1 meters gives unparalleled advantage of movements in narrow spaces which is beneficial in agricultural applications of Grapes, Pomegranate, Land Preparation etc.
Reliable E-TVCS Diesel Engine
Exceptionally durable and reliable engine manufactured by Kubota in Japan. Quiet, low-vibration engine featuring high power, high torque with clean emissions.
2.1m TURNING RADIUS
With the turning radius for the B2741S being as tight as 2.1 m, movements in narrow places or between ridges are completed smoothly without any damage to crops.
Intergral Power Steering
Integrated efficient design provides ease of steering and low maintenance.
Super Draft Control (SDC)
This function contributes to a reduction of slippage when using such implements as cultivators that require strong traction. An additional advantage is that it is never necessary to adjust the depth of cultivation with the result that makes operations easier and more efficient.
ECO PTO
ECO-PTO is the function designed to perform tractor operation by maintaining the PTO revolution at 540 rpm by lowering the engine revolution from 2600 rpm to 1830 rpm. This phenomenon helps to reduce the fuel consumption by operating the 540 rpm of PTO at less engine rpm. This function is recommended for operations in a field of small load fluctuations or for operations of relatively small loads.
Adjustable & Foldable Operator Seat with suspension
Comfortable, durable and easy maintenance convenience.
KUBOTA
B2741S
Engine Power
18.5 kW (27 HP Cat.)
Maximum Torque
81.2 Nm
Rear Tyre Size
8.3 x 20
No. of Cylinders
3
Lift Capacity
750 Kg
Gearbox Type
9 Forward and 3 Reverse
OTHER SPECIFICATIONS
Transmission
Clutch Dry Single Plate Fuel Tank
Capacity 23 litre Brake Types
Brakes Wet Disk Type (OIB) Steering Type
Steering Integral type power steering PTO Type
PTO 540 @ 2 535 | 750 @ 2 542 Tyres
Front Tyre Size 7 x 12 Inches Rear Tyre Size 8.3 x 20/9.5 x 18 Inch (Optional)
