B2441S (Narrow)

logo atom

Engine Power

24 HP Cat.

Drive

4WD

Torque

70 Nm

image product 0
image product 1
image product 2
image product 3
image product 4
image product
image product
image product
image product
image product

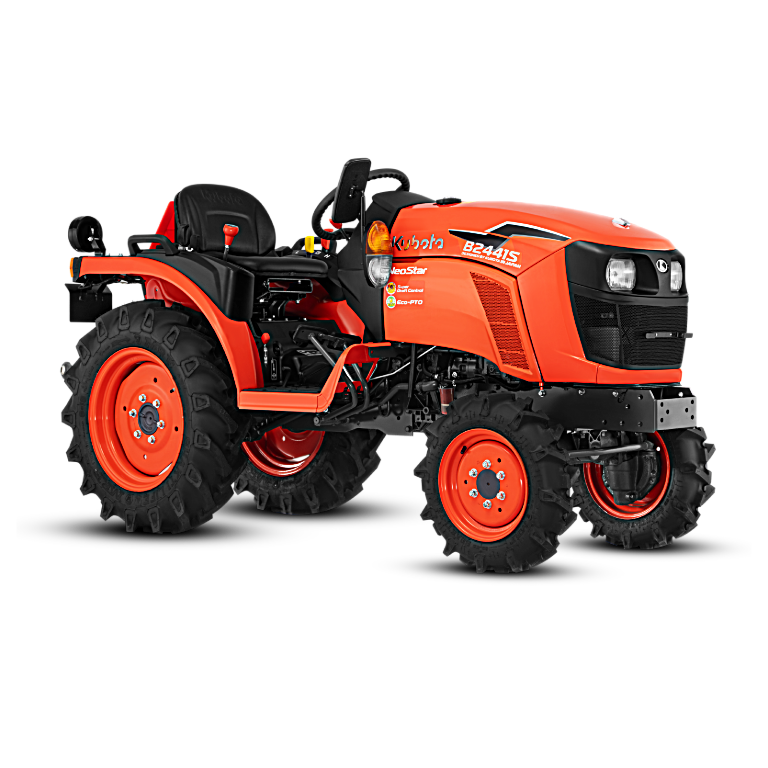

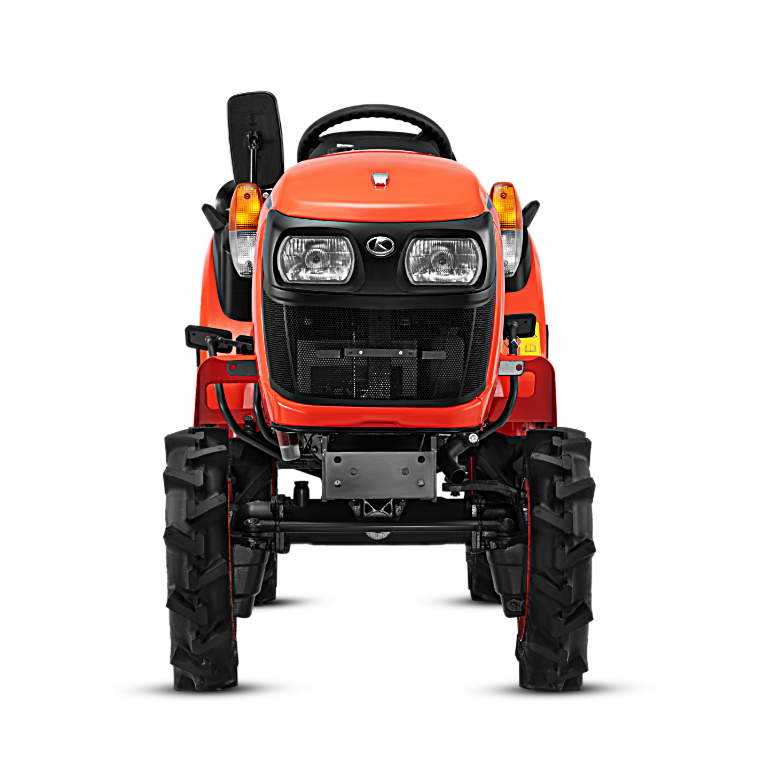

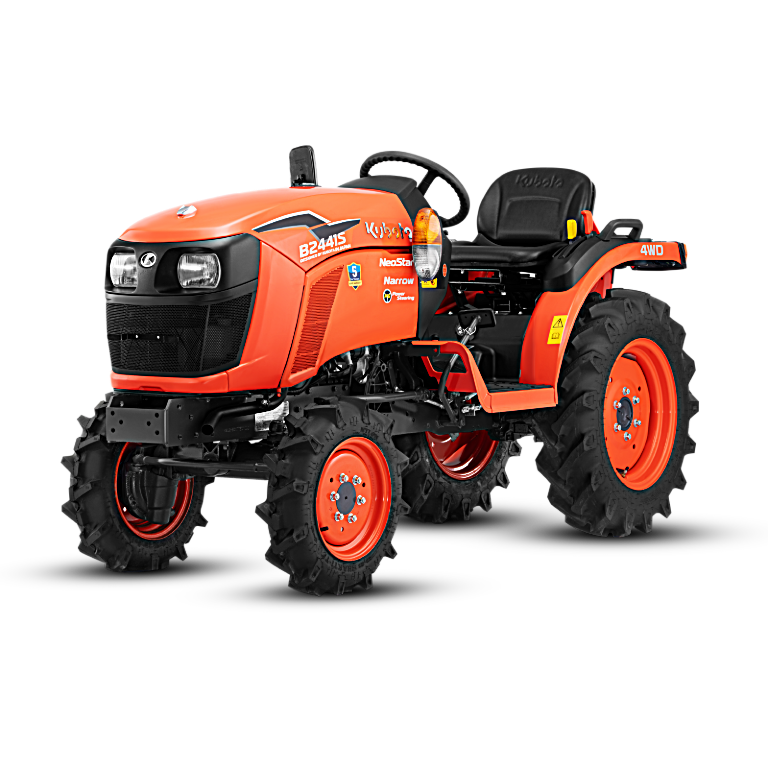

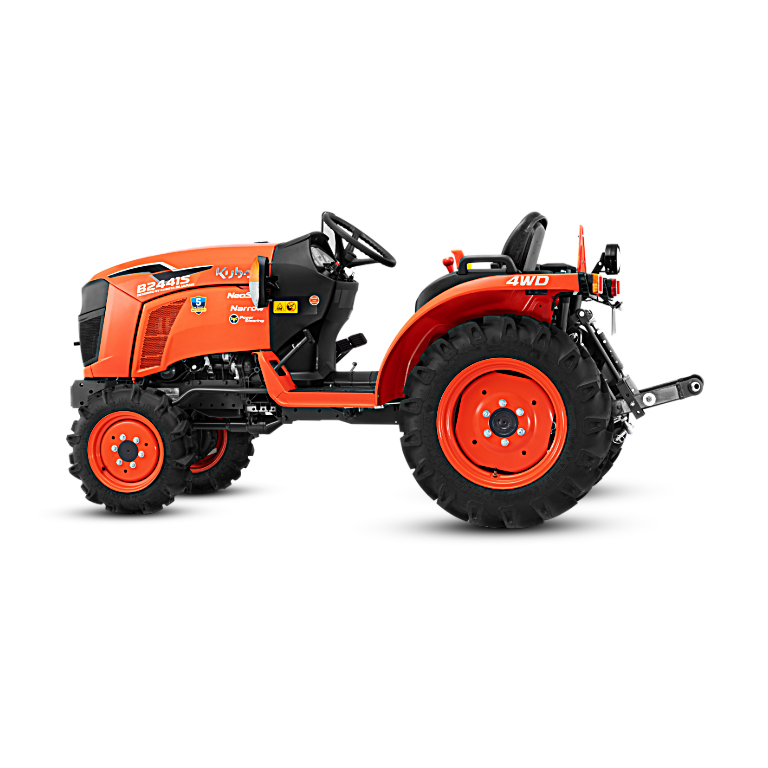

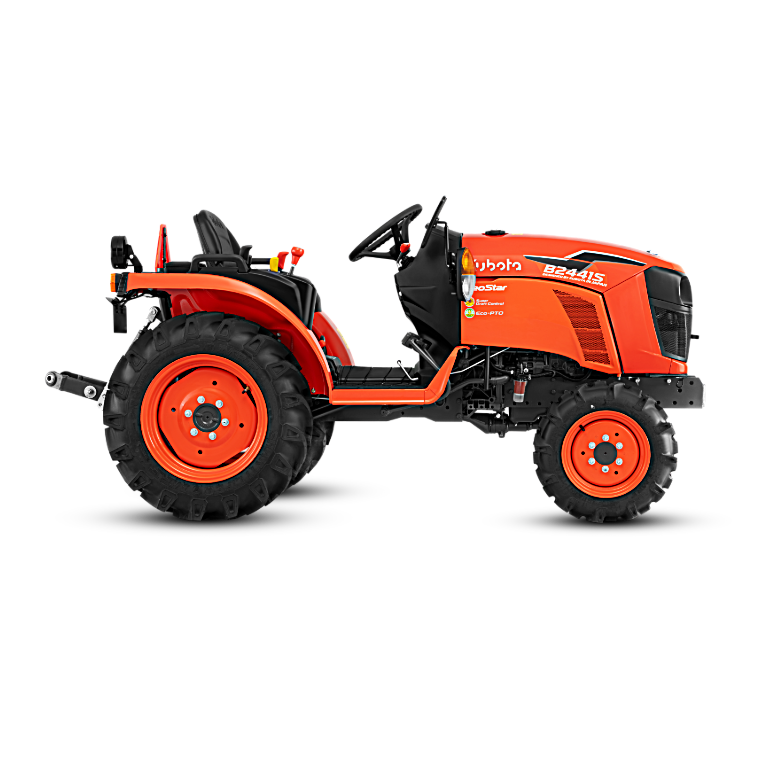

Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

High-powered e-TVCS made of Japan engine of B2441S (Narrow) delivers right performance every time. Its lowest turning radius due to its 4WD bevel gear technology helps in variety of agricultural applications like R/F rotavator, cultivator etc. when it comes to execute these in narrow spaces.

DOWNLOAD BROCHURE
logo atom

Reliable E-TVCS Diesel Engine

Exceptionally durable and reliable engine manufactured by Kubota in Japan. Quiet, low-vibration engine featuring high power, high torque with clean emissions.

logo atom

2.1m TURNING RADIUS

With the turning radius for the B2441S Narrow being as tight as 2.1 m, movements in narrow places or between ridges are completed smoothly without any damage to crops.

logo atom

Narrow Design

B2441S has a narrow rear width of 910 mm (2.98ft). Best suitable for inter-culture in large number of crops.

logo atom

Intergral Power Steering

Integrated efficient design provides ease of steering and low maintenance.

logo atom

Super Draft Control (SDC)

This function contributes to a reduction of slippage when using such implements as cultivators that require strong traction. An additional advantage is that it is never necessary to adjust the depth of cultivation with the result that makes operations easier and more efficient.

logo atom

ECO PTO

ECO-PTO is the function designed to perform tractor operation by maintaining the PTO revolution at 540 rpm by lowering the engine revolution from 2600 rpm to 1830 rpm. This phenomenon helps to reduce the fuel consumption by operating the 540 rpm of PTO at less engine rpm. This function is recommended for operations in a field of small load fluctuations or for operations of relatively small loads.

logo atom

Adjustable & Foldable Operator Seat with suspension

Comfortable, durable and easy maintenance convenience.

KUBOTA

B2441S (Narrow)

specification-atom-26
  • Engine Power

    17.9 kW(24 HP Cat)

  • Maximum Torque

    70 Nm

  • Rear Tyre Size

    8 x 18 Inch

  • No. of Cylinders

    3

  • Lift Capacity

    750 Kg

  • Gearbox Type

    9 Forward and 3 Reverse

OTHER SPECIFICATIONS

  • Transmission

    ClutchDry Single Plate
  • Fuel Tank

    Capacity23 litre
  • Brake Types

    BrakesWet Disk Type (OIB)
  • Steering Type

    SteeringIntegral type power steering
  • PTO Type

    PTO540 @ 2535 | 750 @ 2542
  • Tyres

  • Front Tyre Size5 x 12 inch
  • Rear Tyre Size8 x 18 inch
