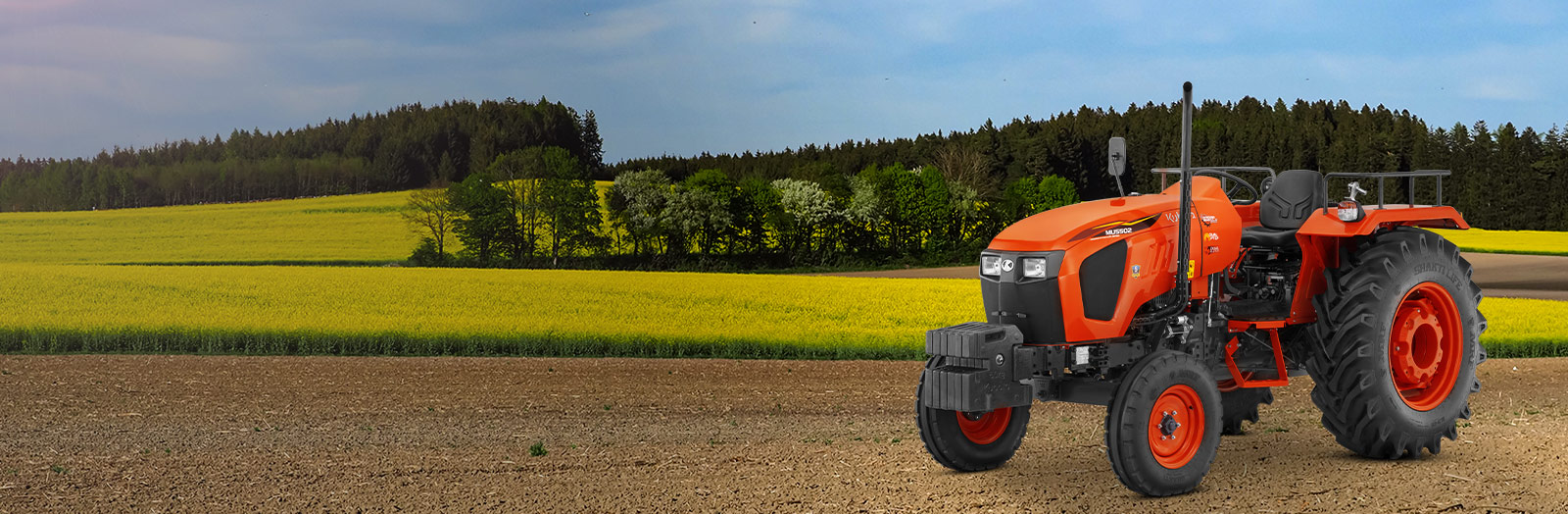

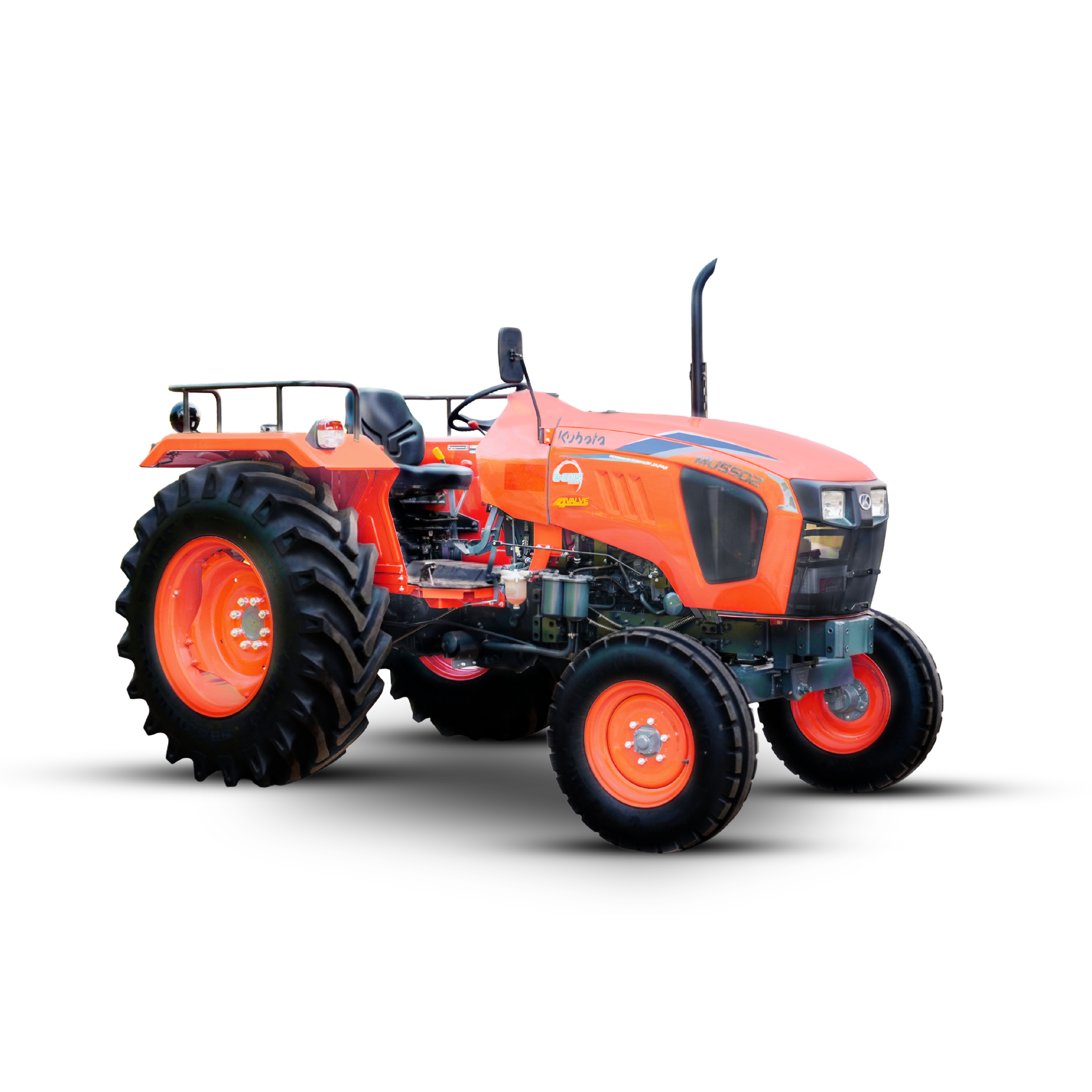

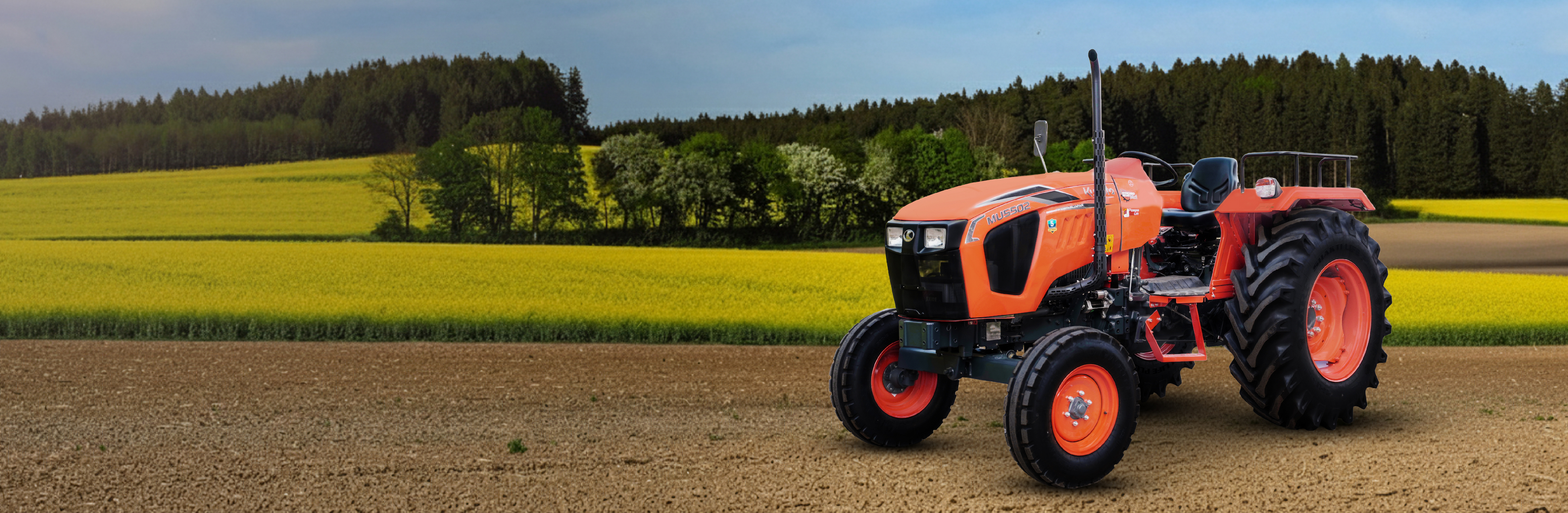

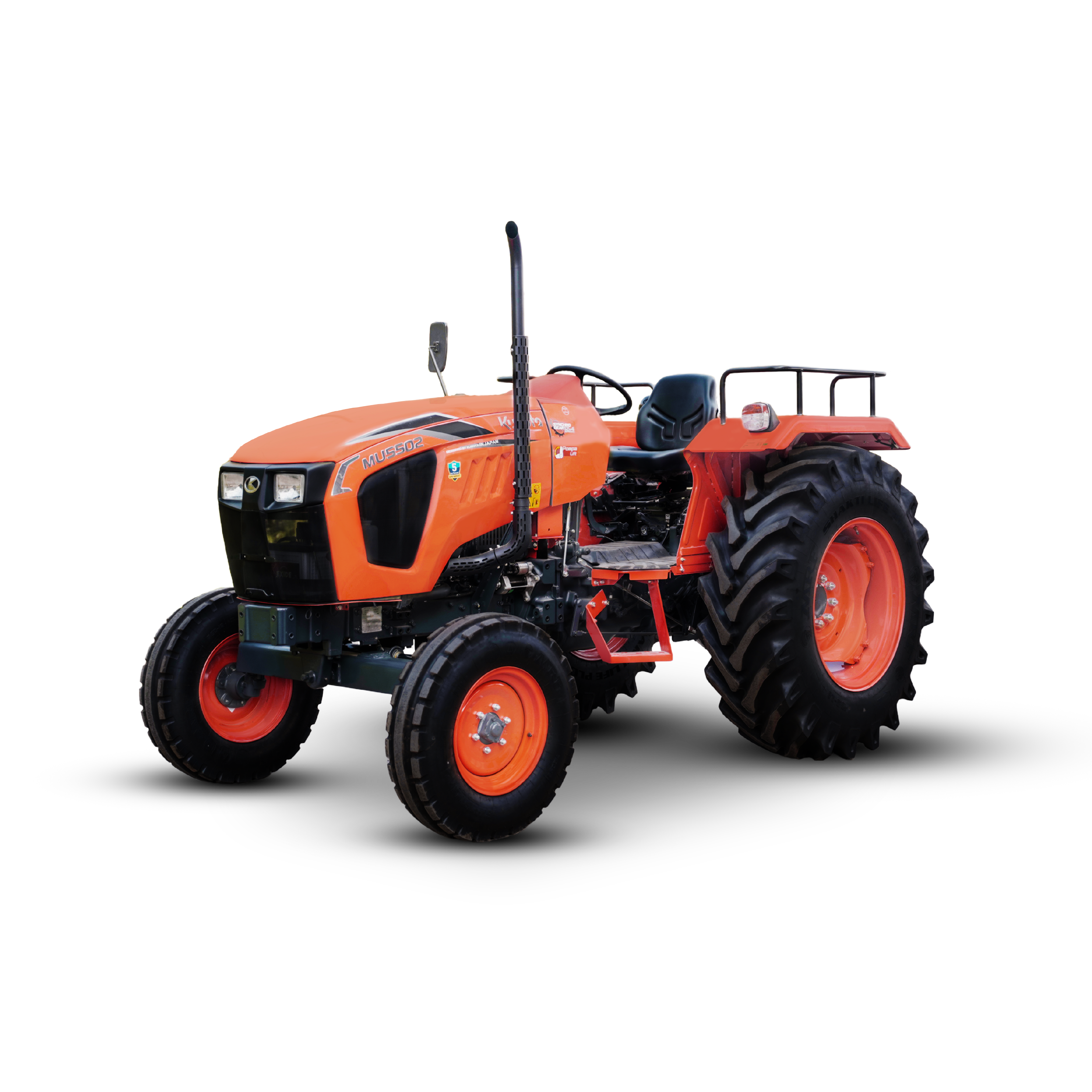

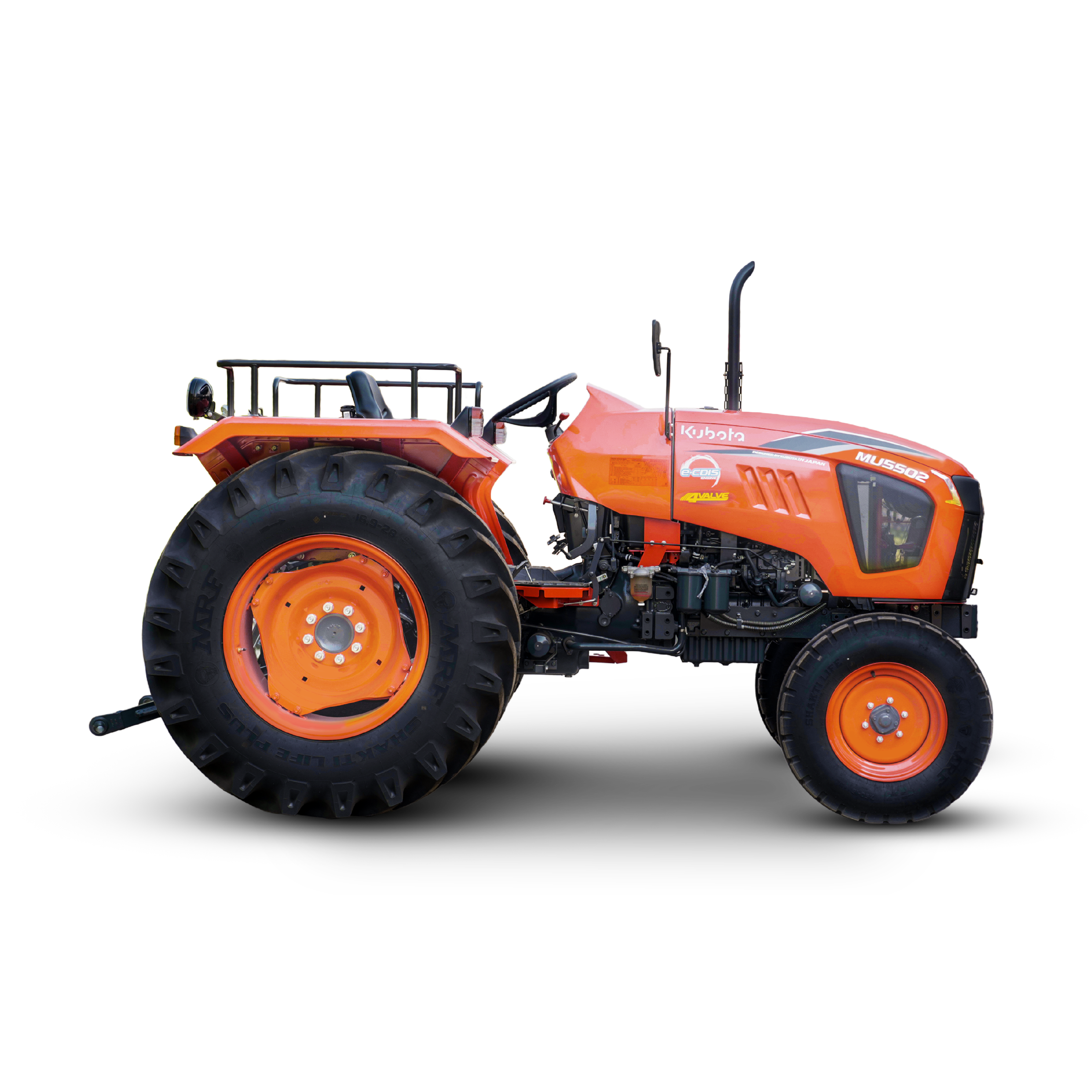

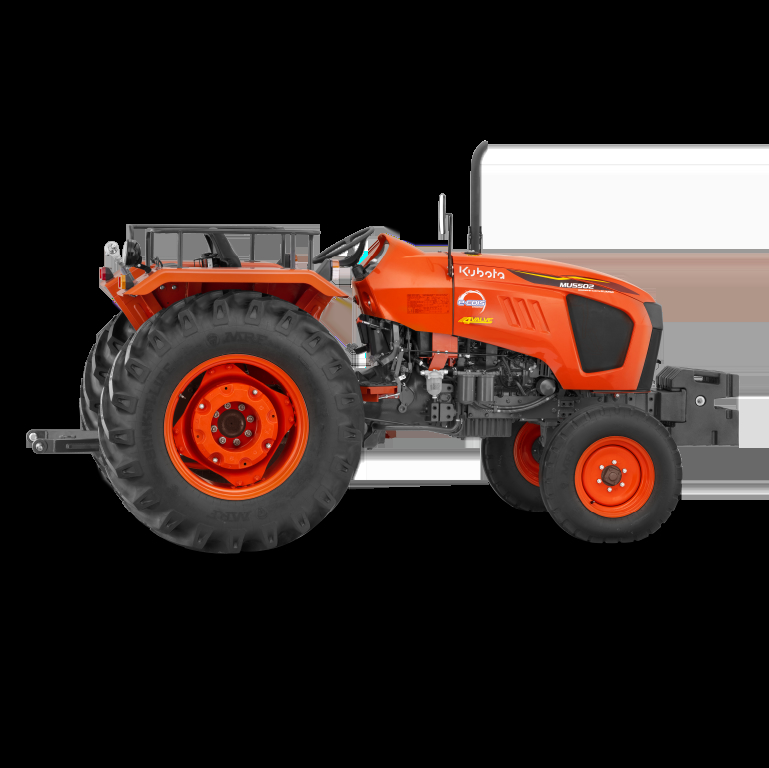

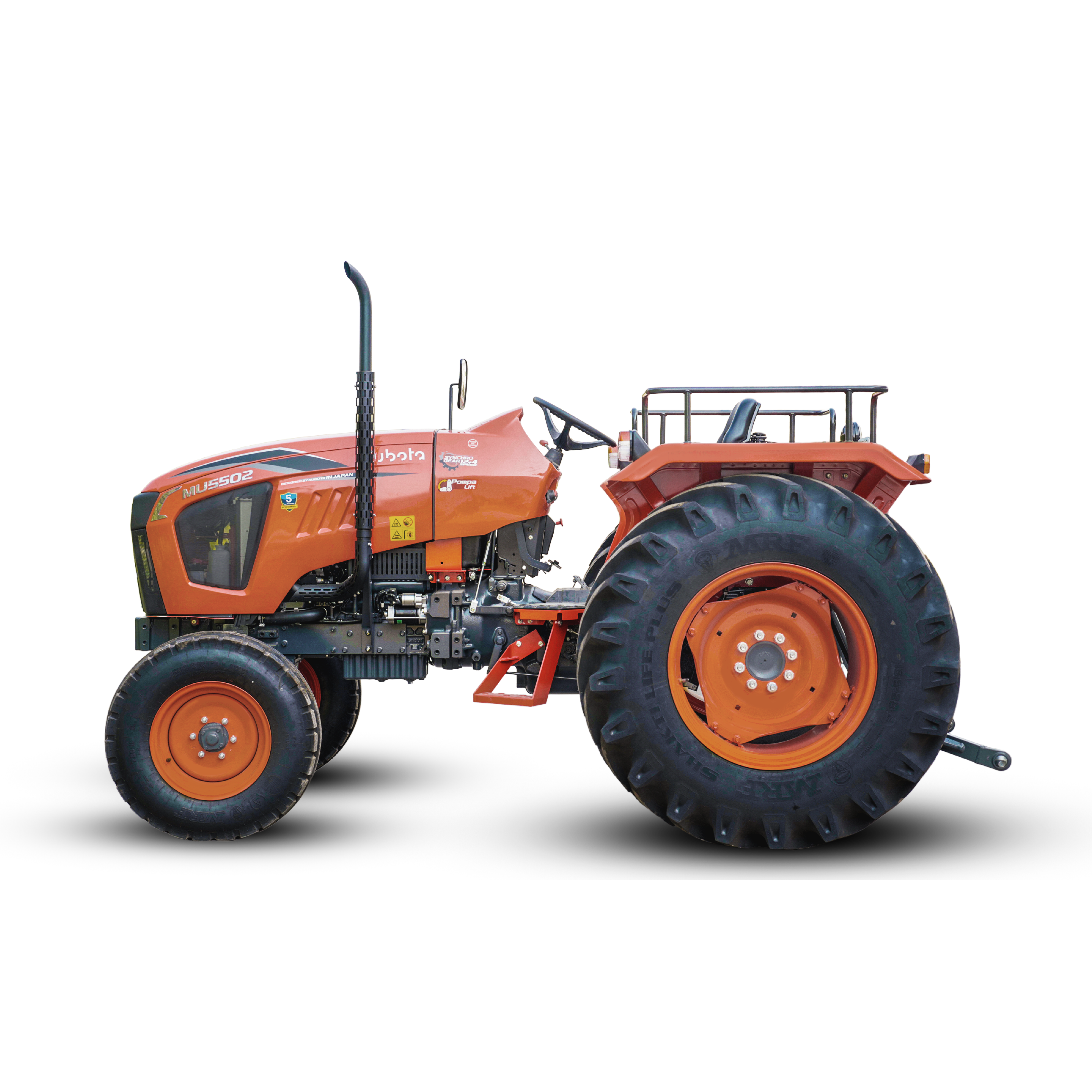

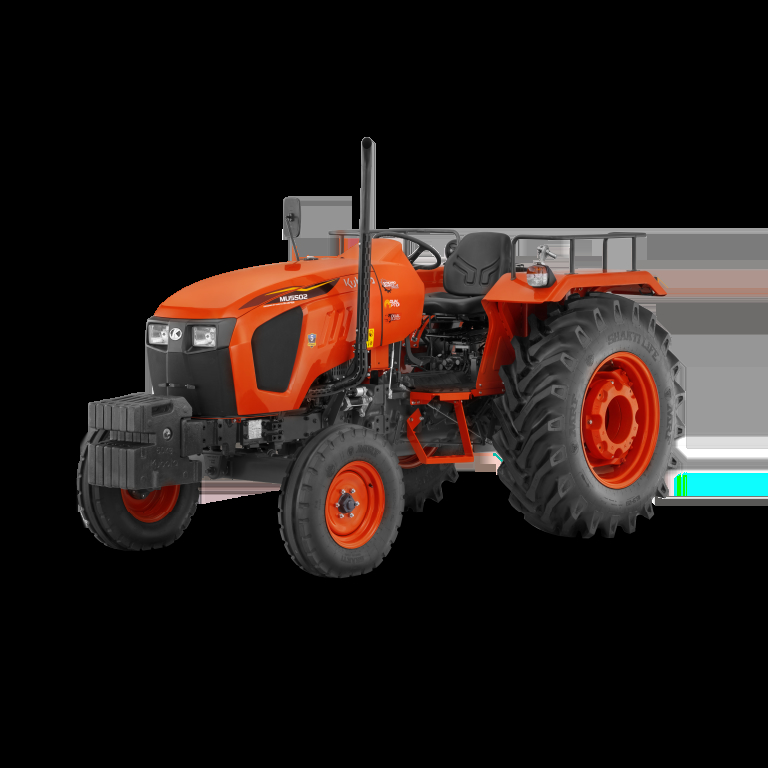

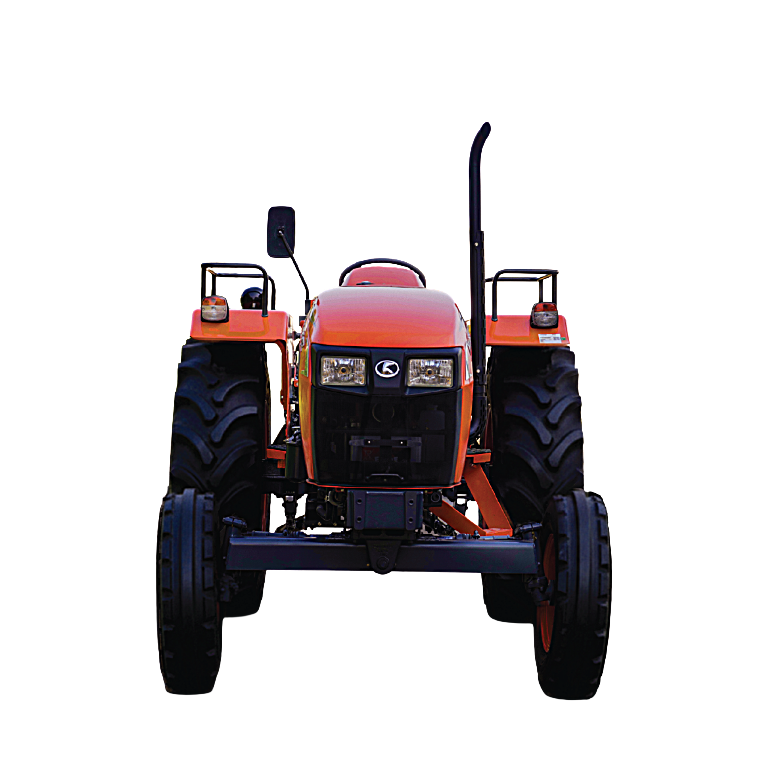

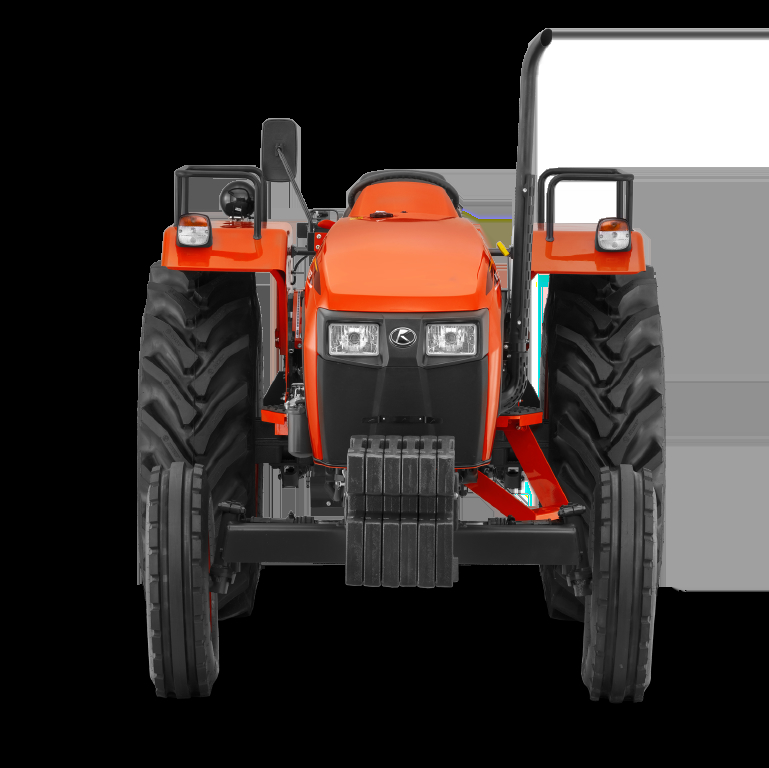

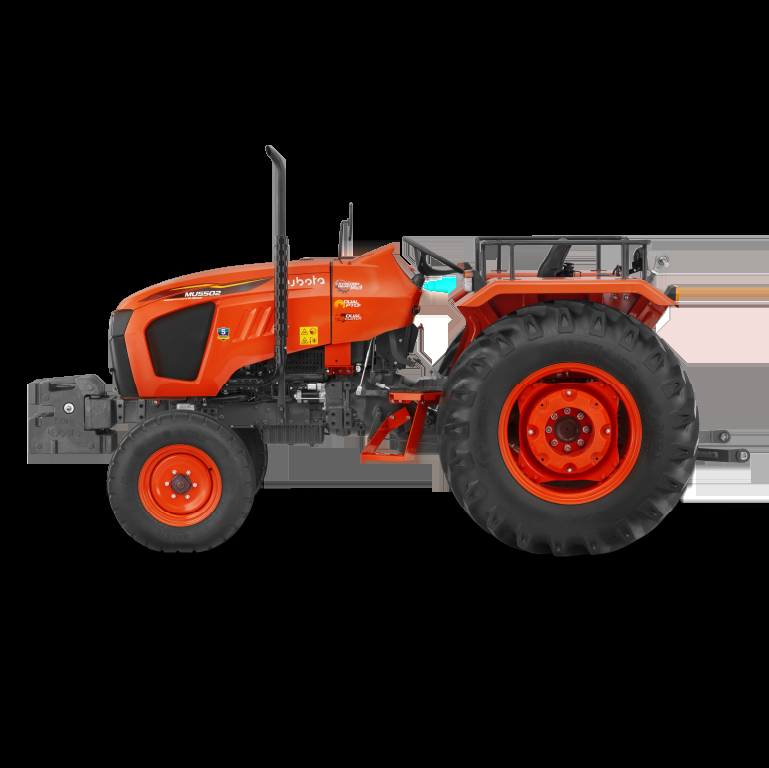

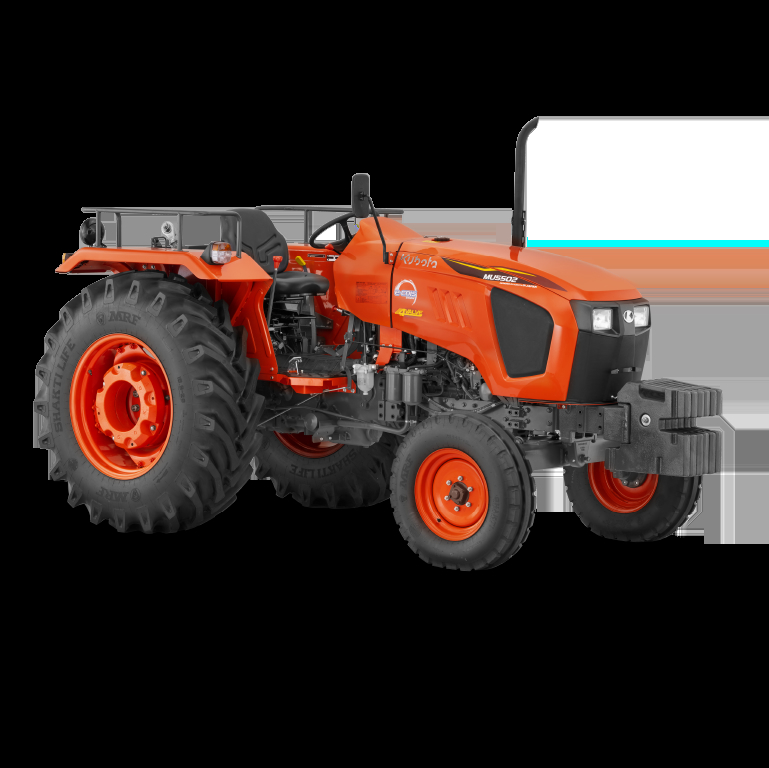

MU5502 2WD
Engine Power
55 HP Cat.
Drive
2WD
Valve system
4 valve
Engine Power
55 HP Cat.
Drive
2WD
Valve system
4 valve





Kubota MU5502 is equipped with advanced technology ECDIS - 4 valve engine which provides unmatched performance with fuel efficiency. The unique Balancer Shaft technology reduces engine vibration and provides a smoother operation for long working hours without fatigue to the operator.





Kubota MU5502 is equipped with advanced technology ECDIS - 4 valve engine which provides unmatched performance with fuel efficiency. The unique Balancer Shaft technology reduces engine vibration and provides a smoother operation for long working hours without fatigue to the operator.

POMPA LIFT
Presenting India’s most farmer friendly lift. Pompa lift offers easy operation of hydraulic lifting with single touch operation of lever which reduces the fatigue on the operator by minimizing frequent manual interventions. With 3 in 1 adjustable lift capacity and 27 adjusting combinations enhance productivity.

e-CDIS TECHNOLOGY
Thanks to Kubota’s world renowned expertise in making E-CDIS technology, it delivers the most powerful and effective combustion and lesser fuel consumption. Version of DI engine is most advanced engine, the fuel injecting nozzles are located vertically compared to other tractors that come with inclined nozzles.

4 VALVES SYSTEM
The 4 valve technology, 2 valves for air suction and 2 valves for exhaust, provides better and cleaner combustion and more power.

BALANCER SHAFT
Kubota's unique balancer shaft on both sides of the engine, which rotates the twice of the engine speed, opposite to each other and absorbs the vibration created by the engine so efficiently, that it hardly vibrates or makes any noise. As a result, farmers enjoy smoother operations for long hours without fatigue, plus reduced maintenance.

SYNCHRO GEAR
The 12F + 4R speed allows MU5502 customers a varied choice of speed options ideal for all types of implements and soil conditions. MU5502 is suitable for all agri as well as commercial applications like Plough, Harrow, TOT, supper seeder, etc.

DUAL ACTING POWER STEERING
The turning performance of the double acting power steering is so smooth that it can be operated even with a single finger.
POMPA LIFT

Pompa Lift

Presenting India’s most farmer friendly lift. Pompa lift offers easy operation of hydraulic lifting with single touch operation of lever which reduces the fatigue on the operator by minimizing frequent manual interventions. With 3 in 1 adjustable lift capacity and 27 adjusting combinations enhance productivity.
e-CDIS TECHNOLOGY

e-CDIS Technology Engine

Thanks to Kubota’s world renowned expertise in making E-CDIS technology, it delivers the most powerful and effective combustion and lesser fuel consumption. Version of DI engine is most advanced engine, the fuel injecting nozzles are located vertically compared to other tractors that come with inclined nozzles.
4 VALVES SYSTEM

4 Valves System

The 4 valve technology, 2 valves for air suction and 2 valves for exhaust, provides better and cleaner combustion and more power.
BALANCER SHAFT

Balancer Shaft

Kubota's unique balancer shaft on both sides of the engine, which rotates the twice of the engine speed, opposite to each other and absorbs the vibration created by the engine so efficiently, that it hardly vibrates or makes any noise. As a result, farmers enjoy smoother operations for long hours without fatigue, plus reduced maintenance.
SYNCHRO GEAR

Synchro Gear Transmission

The 12F + 4R speed allows MU5502 customers a varied choice of speed options ideal for all types of implements and soil conditions. MU5502 is suitable for all agri as well as commercial applications like Plough, Harrow, TOT, supper seeder, etc.
DUAL ACTING POWER STEERING

Dual Acting Power Steering

The turning performance of the double acting power steering is so smooth that it can be operated even with a single finger.
KUBOTA
MU5502-2WD

Engine Power
36.5 kW Cat. (55 HP Cat.)
Valve
4 Valve System
Rear Tyre Size
16.9 x 28 Inch
No. of Cylinders
4
Lift Capacity
2 100 Kg
Transmission Type
12F + 4R Gear Shift
OTHER SPECIFICATIONS
Transmission
Clutch Double Fuel Tank
Capacity 65 litres Brake Types
Brakes Oil immersed disc Steering Type
Steering Hydraulic Double acting power steering PTO Type
PTO Standard 540 Tyres
Front Tyre Size (19.05 cm x 40.64 cm) 7.5 inch x16 inch Rear Tyre Size (40.64 cm x 71.12 cm) 16.9 inch x 28 inch

ROTAVATOR
Harness the robust Kubota MU5502 (2WD) for efficient soil preparation with its powerful Kubota V2403-M-DI-TE3 engine and dual-element dry type air filter. The tractor’s 12F + 4R synchromesh gears and oil-immersed multi-disc brakes ensure precise control during rotavation, making it ideal for preparing fine seed beds.
Harness the robust Kubota MU5502 (2WD) for efficient soil preparation with its powerful Kubota V2403-M-DI-TE3 engine and dual-element dry type air filter. The tractor’s 12F + 4R synchromesh gears and oil-immersed multi-disc brakes ensure precise control during rotavation, making it ideal for preparing fine seed beds.

SUPER SEEDER
Optimize seeding operations with the Kubota MU5502 (2WD) and its powerful 540 RPM PTO at 2 160 ERPM. The tractor’s 12 forward speeds and 7.5 x 16 inch front tyres provide stability and traction for precise seed placement. Equipped with a flat deck design and ergonomic controls, it enhances efficiency in large-scale seeding projects.
Optimize seeding operations with the Kubota MU5502 (2WD) and its powerful 540 RPM PTO at 2 160 ERPM. The tractor’s 12 forward speeds and 7.5 x 16 inch front tyres provide stability and traction for precise seed placement. Equipped with a flat deck design and ergonomic controls, it enhances efficiency in large-scale seeding projects.

STRAW REAPER
Efficiently handle straw with the Kubota MU5502 (2WD), featuring a backup torque of 35% and 12F + 4R synchromesh gears. Its hydraulic double-acting power steering and 65-liter fuel tank capacity ensure uninterrupted operation during straw reaping. Ideal for mechanized straw management, enhancing farm productivity.
Efficiently handle straw with the Kubota MU5502 (2WD), featuring a backup torque of 35% and 12F + 4R synchromesh gears. Its hydraulic double-acting power steering and 65-liter fuel tank capacity ensure uninterrupted operation during straw reaping. Ideal for mechanized straw management, enhancing farm productivity.

SQUARE BALER
Get optimal baling efficiency with the Kubota MU5502 (2WD) and its 2 100 kgf lifting capacity. The tractor’s powerful engine and oil-immersed multi-disc brakes ensure controlled baling operations. With a 2WD fixed front axle and 16.9 x 28 inch rear tyres, it provides stability and strength for precise square baling tasks.
Get optimal baling efficiency with the Kubota MU5502 (2WD) and its 2 100 kgf lifting capacity. The tractor’s powerful engine and oil-immersed multi-disc brakes ensure controlled baling operations. With a 2WD fixed front axle and 16.9 x 28 inch rear tyres, it provides stability and strength for precise square baling tasks.
